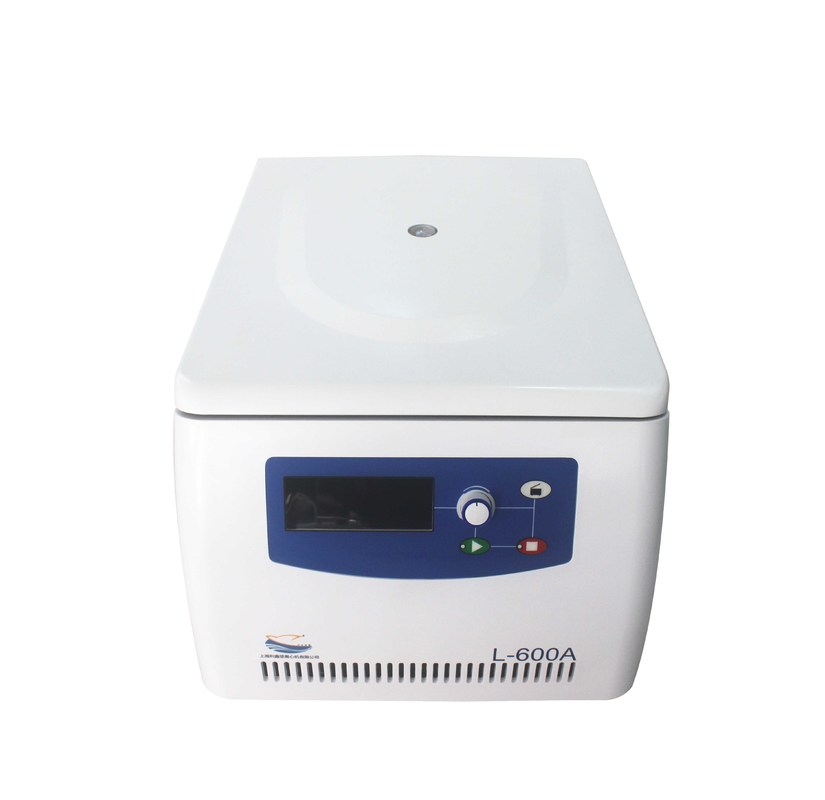

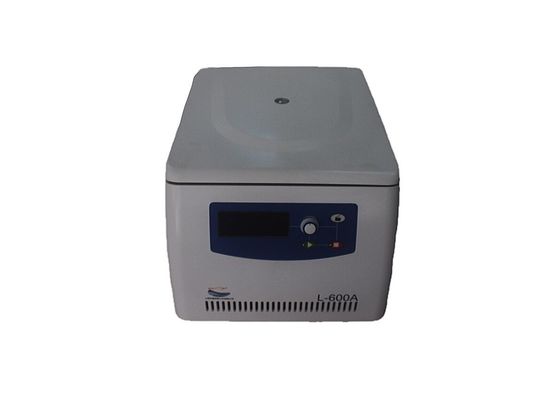

Lab CENTRIFUGE Machine Medical Equipment Locking Lid Brushless Motor
Quick Detail:
| Model |
L-600A |
| Max. speed |
6000 rpm |
| Max. RCF: |
5120*g |
| Max. Capacity: |
angle rotor 12*15ml, 6x 50ml,
horizonal rotor 24x 5ml, 4x 50ml
|
| Timer Range |
1sec~1 hour and 59 mins 59 seconds |
| Brake: |
Automatic |
| Motor: |
Frequency motor |
| Speed accuracy: |
±50r/min |
| Noise |
≤65dB (A) |
| Finish: |
Body ABS once completed, |
| Construction: |
Special Aluminum rotor |
| Dimension: |
39*43*54 cm |
| Weight |
20 kg |
| Power consumption drive |
550W |
| Voltage |
110V or 220~230V |
Features:
- Microcomputer control, DC brushless motor.
- LCD display, Speed/RCF and time display.
- RCF is automatically calculated, touching panel.
- Electronic door locks. Lid safety device.
- Over speed and imbalance protection.
- ABS using, once completed.
- Open the cover automatically when it ends.
- 10 kinds of program stored in the memory.
Description:
1. CE, IS09001 certification.
2. Microprocessor control the speed, time, temperature and RCF. Operated by touch panel, LCD display, operating data can be saved automatically, RCF value can be set directly for working, easy to use.
3. Brushless converter motor which has high torque, free maintenance, no carbon dust pollution, quick in speed up and down.
4. Stainless steel cavity, solid constructing, suitable for continuous use, inflatable spring, easy open lid, automatic locking lid to ensue safe.
5. With door protection, over-temperature unbalance protection, can process real-time monitoring of the centrifuge to ensure the safe operation of equipment.
6. Angle rotors with sealed, horizontal rotor (Biosafa rotor).
7. ABS housing, Once completed.
8. Rotors are for available for your choice. Please contact us freely.
L-600A Rotor Parameter:
| Rotor Type |
Rotor No. |
Capacity (ml) |
Max Speed (r/min) |
Max RCF (*g) |
Test tube type |
| Angle Rotor |
6001A |
12x 15ml |
6000 |
5120 |
Pp conical bottom |
| Angle Rotor |
6002A |
6x 50ml |
6000 |
5120 |
Pp conical bottom |
| |
|
|
|
|
|
|
Swing-out
rotor
(Biosafa rotor)
|
6003A |
8x 15ml |
5000 |
4100 |
Pp conical bottom |
| 24x 5ml |
Vacuum vessel color |
| 6004A |
4x 50ml |
5000 |
3620 |
Pp round bottom |
Remarks:
