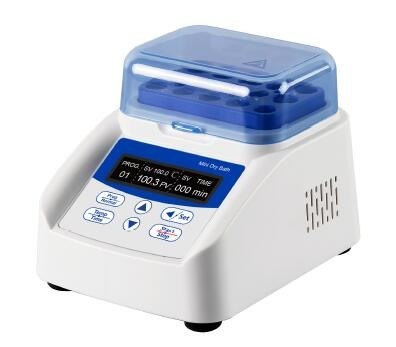

Mini Dry Bath MDB-100H

Mini Dry Bath MDB-100H

Mini Dry Bath MDB-100H

Product Details:

Place of Origin: Shanghai, china
Brand Name: JIANGDONG
Certification: CE
Model Number: MBD100H

Payment & Shipping Terms:

Minimum Order Quantity: 10 units
Price: Negtion
Packaging Details: carton
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Temp Range: RT+5℃~100℃ Safety: Overheating Automatically Disconnects Power And Alerts

Mini Dry Bath MDB-100H



Application:



        MDB100H series of dry incubators are a kind of tiny desktop instrument which combines precise temperature control with high quality design. Both the main engine and the modules have multiples options which meet the needs of various experiments with precise control temperature, good repeatability and fast and safe heating. It is used for Basic function, Life sciences, Industry, Bio, Clinic.

Specification:



Model MDB100H
Temp setting range 0℃~100℃
Temp range RT+5℃~100℃
Time range

1~999sec/1 ~ 999min/Hold

Two modes exchange

Temp accuracy ≤±0.3℃*
Display accuracy 0.1℃
Temp uniformity ≤±0.3℃*
Heating time ≤15min(from 25℃ to 100℃)*
Safety Overheating automatically disconnects power and alerts
Power 48W
Voltage DC24V
Fuse 250V 3A Ф5×20
Dimension(mm) 114x140x107
Weight(kg) 0.8

  Features:

  • Safe voltage of DC24V is adopted in the whole machine to ensure the absolute safety when the experimenters contacting the aluminum modules Automatic fault detection and buzzer alarm function.
  • Excellent stability and uniformity of temperature to ensure the accuracy of experiment.
  • PID digital temperature control for more rapid, accurate and convenient temperature calibration
  • OLED large screen display allows more parameters reproduced more intuitively.
  • Convenient operation with over-temperature cut-off of power supply and alarm for quickly forced cooling to preserve precious experimental reagents.
  • High quality precise module producing to ensure the best thermal conductivity.
  • A simpler two-point temperature correction method for +/-5℃zero correction and full scale correction.
  • A function of one-button AT self-turning of temperature parameters in different environments.

Optional Blocks





chinalab55

Model Capacity Tubes Remarks

MDB-100H-1 1.5ml 15 holes PP Cone bottom with cap
MDB-100H-2 2.0ml 15 holes PP Cone bottom with cap
MDB-100H-3 0.5ml 24 holes PP Cone bottom with cap
MDB-100H-4 0.2ml/PCR 40 holes PP Cone bottom with cap
MDB-100H-5 5ml 6 holes PP Cone bottom with cap
MDB-100H-6 15ml 4 holes PP Cone bottom with cap
MDB-100H-7 50ml 2 holes PP Cone bottom with cap
MDB-100H-8 12.5×12.5 8 Piece
